Logic gates are the building blocks of modern technology. From your smartphone to computers, calculators, and even washing machines, logic gates play a very important role. If you’ve ever wondered how machines “think” or make decisions, the answer lies in logic gates.
In this detailed guide, we will explore logic gates in a simple and easy way. You’ll learn what they are, how they work, and why they matter so much in today’s world. Don’t worry this article is written in Grade 7 English, so everything is easy to understand and enjoyable to read.
What Are Logic Gates?
Logic gates are small electronic circuits that take one or more inputs and give one output. They follow simple rules based on logic, just like we use in daily life.
For example:
- If it is raining, you take an umbrella.
- If it is sunny, you wear sunglasses.
In the same way, logic gates make decisions based on inputs.
Simple definition:
Logic gates are devices that perform logical operations on one or more inputs to produce a single output.
Why Logic Gates Are Important
Logic gates are everywhere. They are used in:
- Computers
- Mobile phones
- Digital watches
- Traffic light systems
- Video games
Without logic gates, digital electronics would not exist. They are like the brain of machines.
Key Reasons They Matter
- They help machines make decisions
- They process information quickly
- They form the base of digital circuits
- They make automation possible
Basic Idea Behind Logic Gates
Logic gates work using something called binary numbers. This means they only understand two values:
| Value | Meaning |
|---|---|
| 0 | OFF / False |
| 1 | ON / True |
Every input and output in logic gates is either 0 or 1.
Think of it like a light switch:
- OFF = 0
- ON = 1

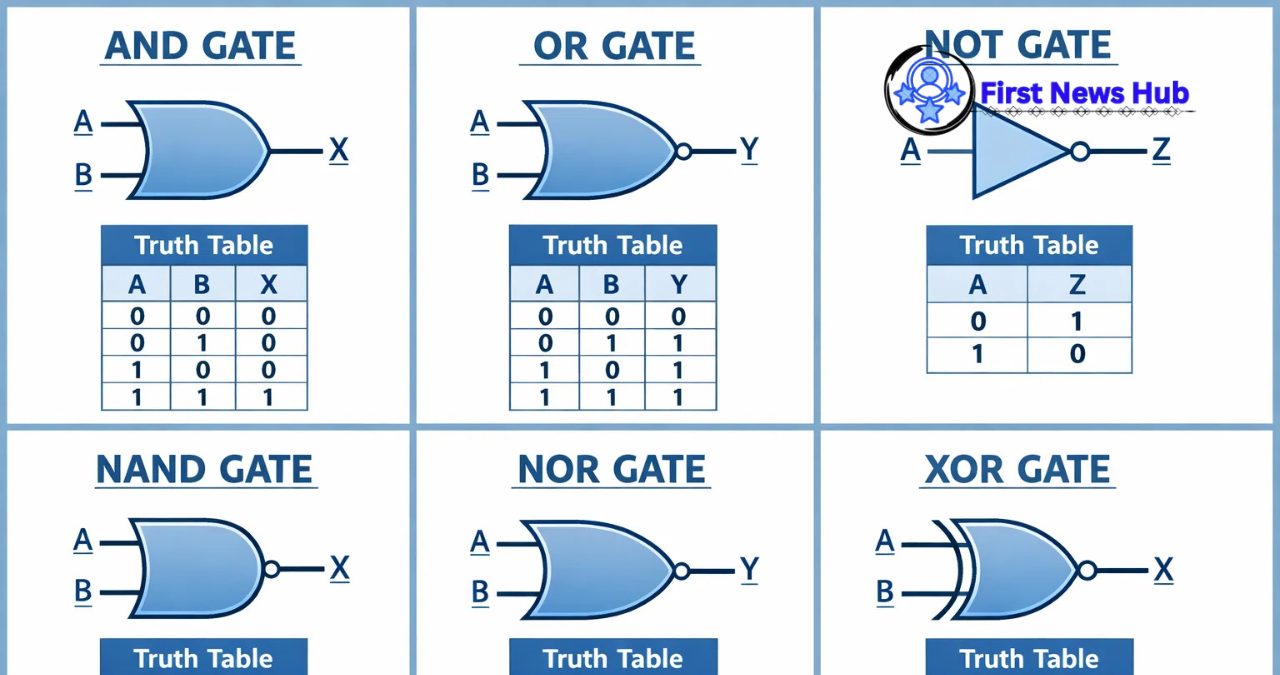

Types of Logic Gates
There are several types of logic gates. Each one has its own rule.
Main Types of Logic Gates
- AND Gate
- OR Gate
- NOT Gate
- NAND Gate
- NOR Gate
- XOR Gate
- XNOR Gate
Let’s understand each one step by step.
AND Logic Gate
The AND gate gives an output of 1 only when all inputs are 1.
Rule
Output is TRUE only if all inputs are TRUE.
Truth Table
| Input A | Input B | Output |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
Real-Life Example
You will get a reward only if:
- You finish homework AND
- You clean your room
If one task is not done, no reward!
OR Logic Gate
The OR gate gives an output of 1 if at least one input is 1.
Rule
Output is TRUE if any input is TRUE.
Truth Table
| Input A | Input B | Output |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 1 |
Real-Life Example
You can go out if:
- It is Saturday OR
- It is a holiday
Only one condition is enough.
NOT Logic Gate
The NOT gate is very simple. It has only one input and gives the opposite output.
Rule
Output is the opposite of input.
Truth Table
| Input | Output |
|---|---|
| 0 | 1 |
| 1 | 0 |
Real-Life Example
If the light is ON, the NOT gate makes it OFF.
NAND Logic Gate
NAND means NOT AND. It is the opposite of the AND gate.
Rule
Output is FALSE only when all inputs are TRUE.
Truth Table
| Input A | Input B | Output |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
Interesting Fact
NAND is a universal gate. This means you can create all other logic gates using only NAND gates.
NOR Logic Gate
NOR means NOT OR. It is the opposite of the OR gate.
Rule
Output is TRUE only when all inputs are FALSE.
Truth Table
| Input A | Input B | Output |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 0 |
XOR Logic Gate
XOR means Exclusive OR.
Rule
Output is TRUE only when inputs are different.
Truth Table
| Input A | Input B | Output |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
Real-Life Example
You can enter a room only if:
- You have a key OR a password, but not both
XNOR Logic Gate
XNOR is the opposite of XOR.
Rule
Output is TRUE when inputs are the same.
Truth Table
| Input A | Input B | Output |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
Comparison of All Logic Gates
Here’s a quick table to understand all logic gates together:
| Gate | Condition for Output = 1 |
|---|---|
| AND | All inputs are 1 |
| OR | At least one input is 1 |
| NOT | Opposite of input |
| NAND | Not all inputs are 1 |
| NOR | All inputs are 0 |
| XOR | Inputs are different |
| XNOR | Inputs are same |
Applications of Logic Gates
Logic gates are used in many real-world systems. Let’s take a look:
In Computers
- Perform calculations
- Process data
- Control operations
In Mobile Phones
- Run apps
- Handle signals
- Manage battery
In Security Systems
- Alarm systems
- Door locks
- Motion sensors
In Traffic Lights
- Control timing
- Manage signals
In Gaming Devices
- Control game logic
- Process player actions
How Logic Gates Work Together
One logic gate alone is useful, but when many are connected, they form circuits.
These circuits can:
- Add numbers
- Store data
- Make decisions
For example:
- Adders use logic gates to perform addition
- Memory units store data using gates
So, logic gates are like small workers, and circuits are the whole team.
Advantages of Logic Gates
Logic gates have many benefits:
- Fast processing
- High accuracy
- Small size
- Low cost
- Reliable performance
They make modern electronics possible.
Challenges of Logic Gates
Even though logic gates are powerful, they have some challenges:
- Heat generation
- Power consumption
- Complex design in large systems
But don’t worry engineers are always improving them.
Fun Facts About Logic Gates
- Logic gates are used in space technology!
- Even calculators use thousands of logic gates
- A modern computer has billions of logic gates
Isn’t that amazing?
Tips to Understand Logic Gates Easily
Here are some simple tips:
- Think in TRUE (1) and FALSE (0)
- Practice truth tables
- Use real-life examples
- Draw diagrams
- Start with basic gates first
Future of Logic Gates
The future of logic gates looks very bright.
New technologies like:
- Artificial Intelligence (AI)
- Robotics
- Smart homes
All depend on logic gates.
Scientists are also working on:
- Faster gates
- Smaller circuits
- Energy-saving designs
So, logic gates will continue to shape the future.
Conclusion: Why Logic Gates Matter
Logic gates are simple but powerful tools. They help machines think, decide, and act. From basic devices to advanced systems, logic gates are at the heart of everything digital.
By understanding logic gates, you take the first step into the world of electronics and technology. It might seem tricky at first, but once you get the hang of it, it becomes fun and exciting.
So, keep learning, keep exploring, and remember logic gates are the tiny heroes behind the big world of technology!
